Quansheng TG-K10AT - Professional VHF / UHF Radio

€59.00

Quantity

The Quansheng TG-330 is a 16 channel high quality radio with dual-standby and uses the newest polymer lithium battery for up to a 100 hours long-standby time.

Amateur radio · Tough 10 W dual-bander

A tough 10 W dual-bander with a 4000 mAh battery.

The TG-K10AT combines an amateur-radio feature set with a rugged, ribbed body: 10 W on VHF and UHF, a 4000 mAh battery and loud 1 W audio.

It covers 136–174 and 400–480 MHz with 100 channels, a backlit display, voice prompts and a torch, in black or in camouflage.

10 WTX power

100channels

4000mAh battery

1 Waudio

Transmitting needs an amateur radio licence. In Europe licensed amateurs use 144–146 MHz (2 m) and 430–440 MHz (70 cm). Listening needs no licence in most countries.

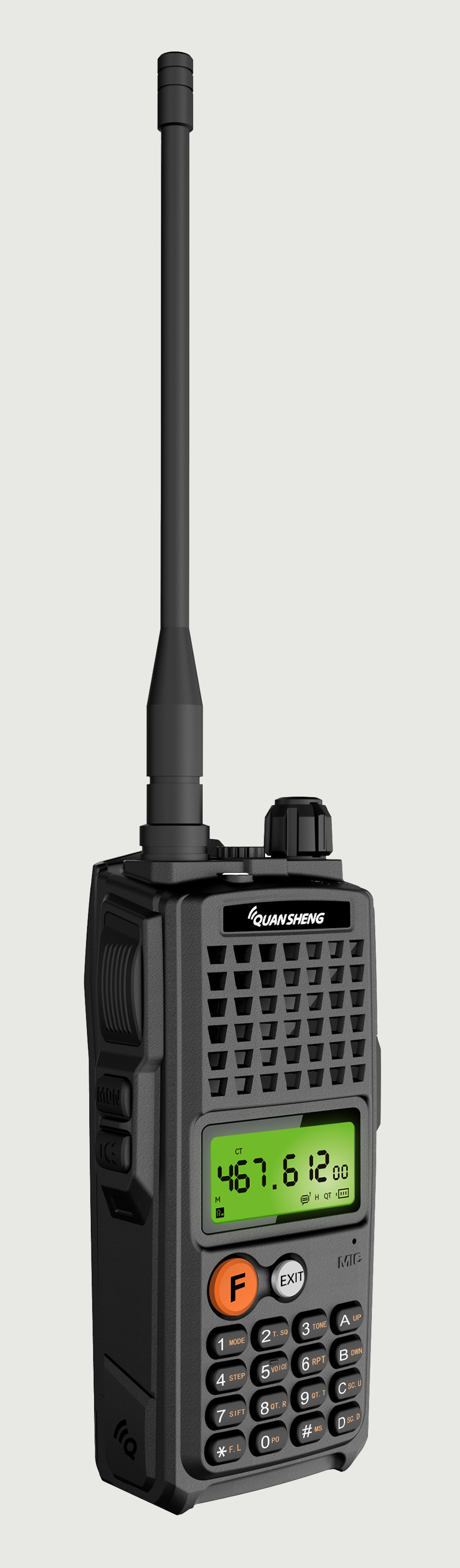

Quansheng TG-K10AT amateur radio, front at an angle — Quansheng TG-K10AT · black, or camouflage

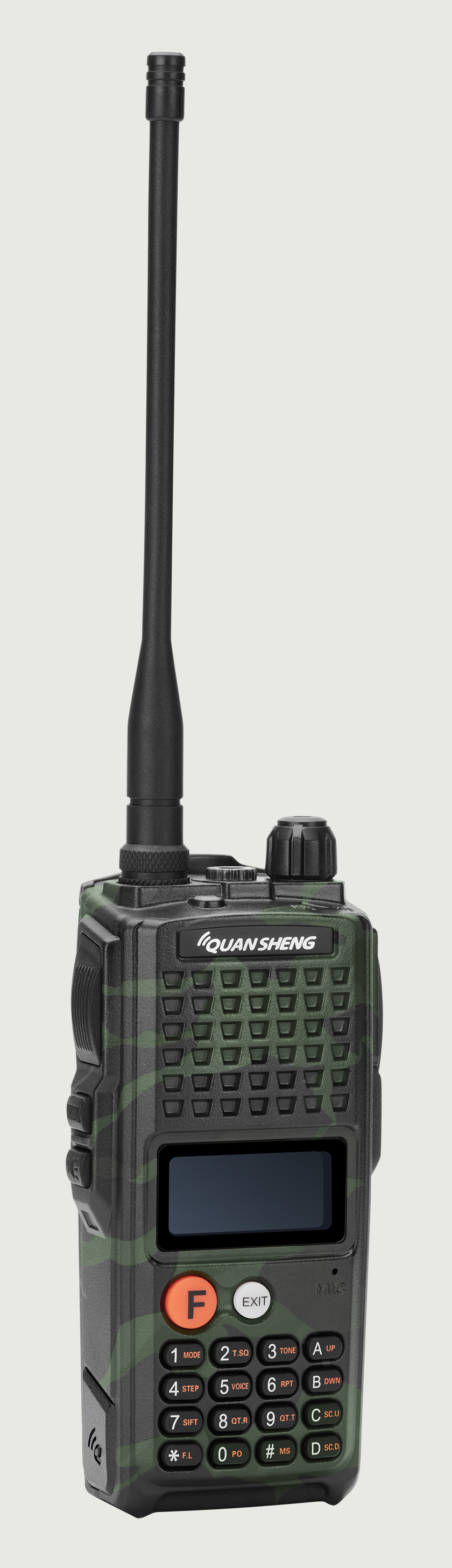

Quansheng TG-K10AT in camouflage — Quansheng TG-K10AT · black, or camouflage

Highlights

What the TG-K10AT does well

10 W, dual band

VHF 136–174 MHz and UHF 400–480 MHz at up to 10 W for better reach and penetration.

4000 mAh battery

A lithium-polymer pack for very long standby.

1 W audio

Loud, clear audio with a receiver sensitivity of −122 dBm (12 dB SINAD).

Tough body

A rugged, ribbed housing, available in black and in camouflage.

100 channels

PLL frequency synthesis, channel scan, and CTCSS/DCS set separately for receive and transmit.

Torch and voice prompts

A built-in torch (jacklight), a backlit display and English voice prompts.

Frequency coverage

Where the TG-K10AT listens and talks

The factory specification: VHF 136–174 MHz and UHF 400–480 MHz, for both transmit and receive.

Transmits136–174 · 400–480 MHz, 10 W

Receivessame bands

Amateur bands10 m · 6 m · 2 m · 70 cm, Europe, for reference

The ranges are wider than the amateur bands: transmit only where your licence allows (in Europe 144–146 and 430–440 MHz).

In the box

What comes with the TG-K10AT

Battery4000 mAh
Desk charger
Power adapter
Belt clip

As listed by the factory (its list names no antenna, while every factory photo shows one fitted; ask us if in doubt).

Specifications

Quansheng TG-K10AT specifications

Channels: 100
Battery: 4000 mAh lithium polymer, 7.2 V
Size: 138 × 62 × 37 mm
Weight: 298 g
Frequency stability: ±2.5 ppm
Antenna impedance: 50 Ω
Operating temperature: −20 °C to +50 °C
Colours: black; camouflage

Frequency bands: 136–174 MHz, 400–480 MHz
Output power: 10 W
Modulation: FM, 16K0F3E / 11K0F3E
Max. deviation: ≤ 5 kHz / ≤ 2.5 kHz
Current: ≤ 2.8 A
Spurious emission: ≤ 7.5 µW

Frequency bands: 136–174 MHz, 400–480 MHz
Sensitivity: −122 dBm (12 dB SINAD)
Adjacent channel selectivity: ≥ 65 / ≥ 60 dB
Blocking: ≥ 85 dB
Intermodulation rejection: ≥ 65 / 60 dB
Audio power: 1 W
Audio distortion: ≤ 10 %

All 14 functions, from the factory list

Menu
Battery
Multi display of frequency
Language
LCD Display
Jacklight
CTCSS/DCS
Scan
Time-out-timer (TOT)
Low power alarm
Squelch level adjustable
Traditional Circuit
100 channels
High power, 10 W

Source: Factory specification table and feature list.

Compare

The Quansheng amateur range side by side

Every amateur handheld the factory makes. The TG-K10AT is highlighted.

Model	TX power	Transmit	Receive	Channels	Battery	Charging	Weight
UV-K1	≤ 5 W	136–174 / 400–470 MHz	50–600 MHz	200	1400 mAh (2500 opt.)	Desk + USB-C*	190 g

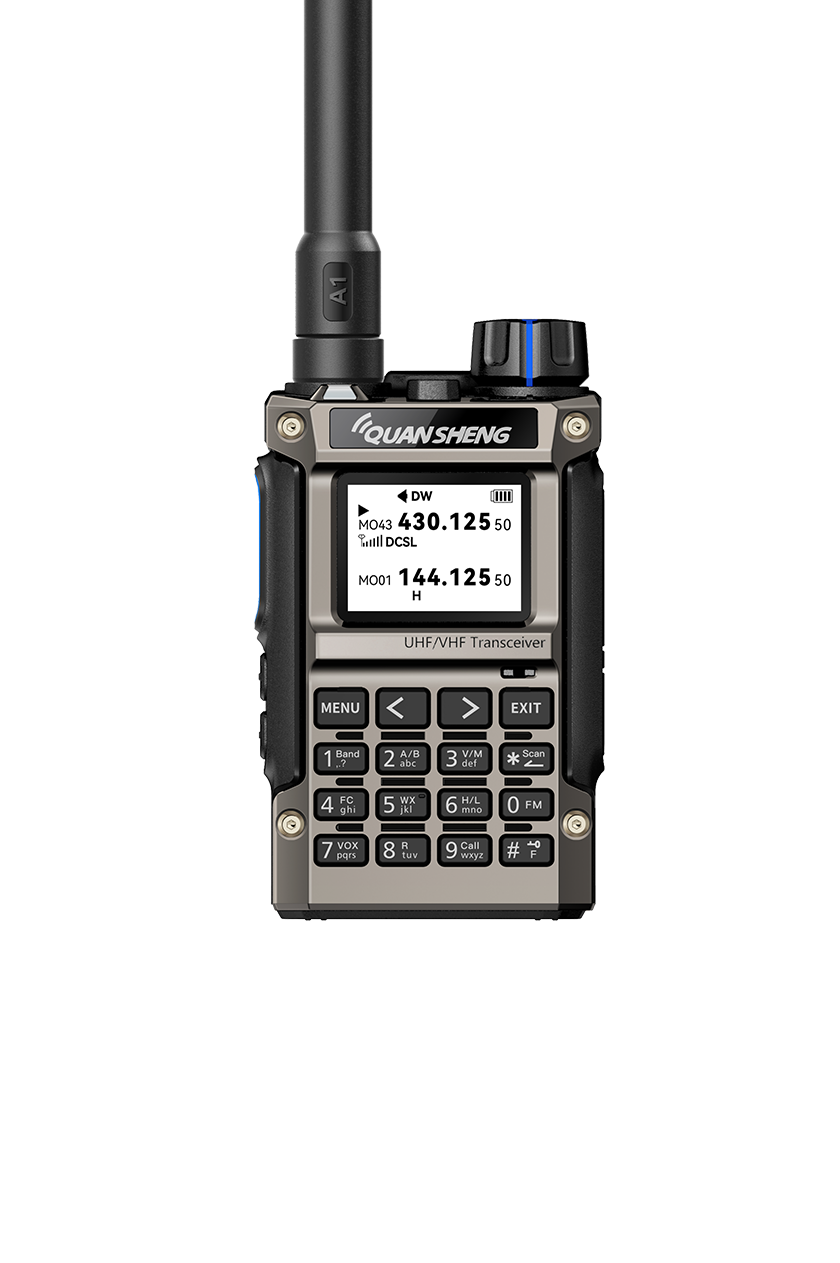

UV-K1(8)	≤ 5 W	136–174 / 400–470 MHz	50–600 MHz	200	1400 mAh (2500 opt.)	Desk + USB-C*	210 g

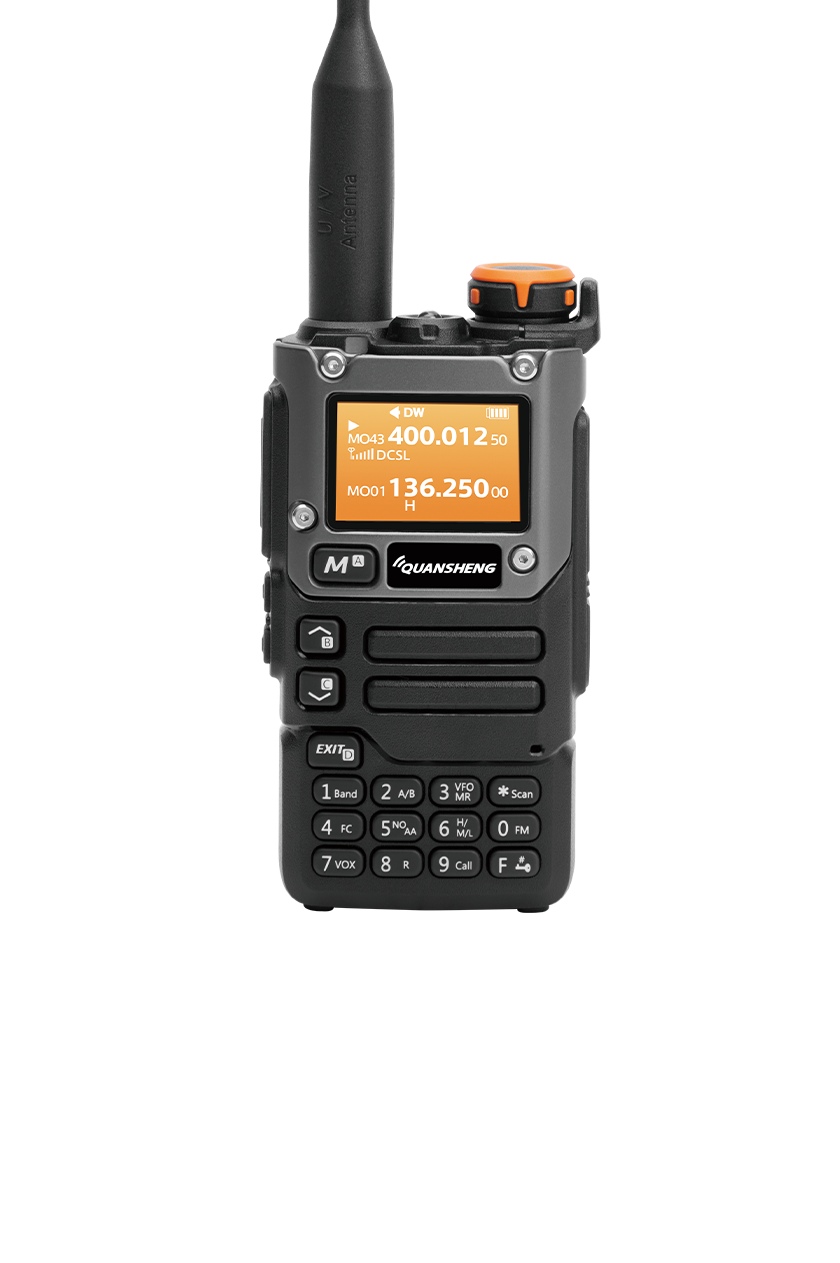

UV-K5	≤ 5 W	144–146 / 430–440 MHz (CE)	50–600 MHz	200	1600 mAh	Desk + USB-C	234 g
UV-K5(8)	≤ 5 W	144–146 / 430–440 MHz (CE)	50–600 MHz	200	1600 mAh	Desk + USB-C	234 g
TK11	10 W	25–29.8 / 50–54 / 136–174 / 350–490 MHz	0.153–1160 MHz, SSB	999	2500 mAh	Desk + USB-C	289 g

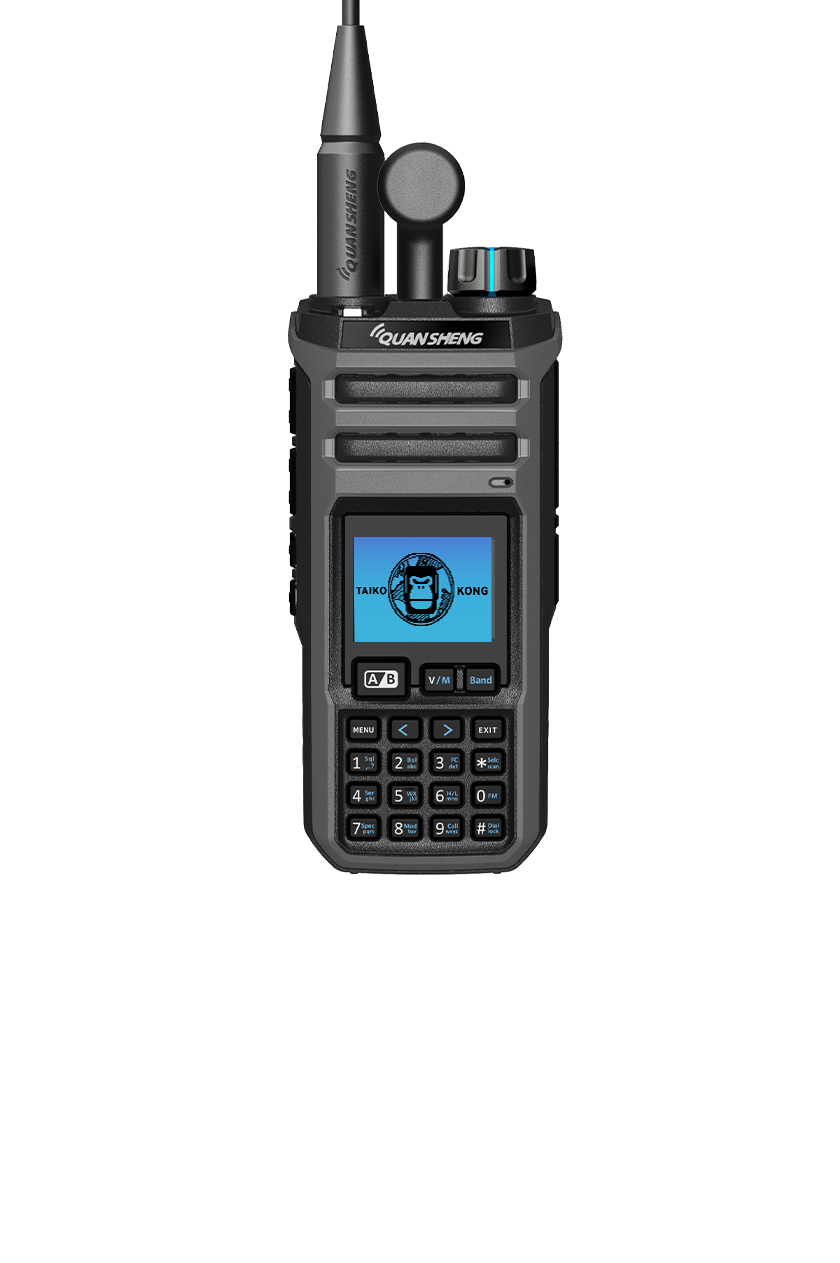

TK11(5)	10 W	25–29.8 / 50–54 / 136–174 / 350–490 MHz	0.153–1160 MHz, SSB	999	2500 mAh	Desk + USB-C	284 g

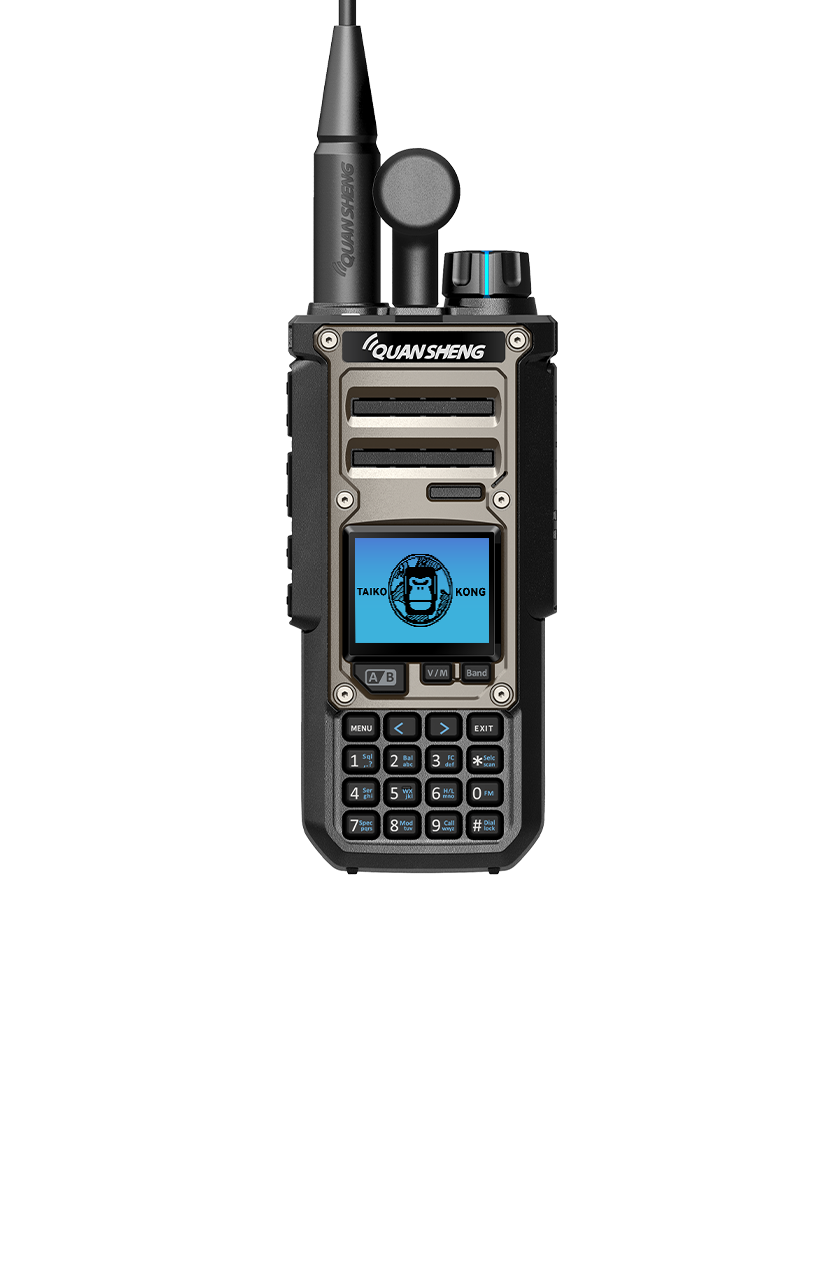

TK11(8)	10 W	25–29.8 / 50–54 / 136–174 / 350–490 MHz	0.153–1160 MHz, SSB	999	3000 mAh	Desk + USB-C	301 g
TG-UV2 PLUS	—	136–174 / 350–390 / 400–470 MHz	same + FM radio	200	4000 mAh	Desk	261.5 g
TG-K10ATThis radio	10 W	136–174 / 400–480 MHz	same	100	4000 mAh	Desk	298 g

TX power of the TG-UV2 PLUS: factory data disagrees. *UV-K1: USB-C on version A. Transmit ranges are the factory's; you may transmit only where your licence allows.

Downloads

Manual and software

Straight from Quansheng. Firmware updates are at your own risk; follow the factory's instructions.

TG-K10AT programming software (CPS)ZIP, 2025-12-06 · factory download

Good to know

Questions about the TG-K10AT

Still unsure? Mail us at info@quansheng.eu

Do I need a licence?

To transmit, yes: an amateur radio licence from your national regulator, and only on the bands your licence allows. Listening needs no licence in most countries, so many owners start by listening.

TG-K10AT or TG-UV2 PLUS?

Both are dual-band with a 4000 mAh battery. The TG-K10AT is the tougher 10 W radio with 1 W audio and a camouflage option; the TG-UV2 PLUS has 200 channels and FM radio.

Which colours are there?

The factory makes it in black and in camouflage. Ask us which one we have in stock.

Can I program it from a computer?

Yes. The factory's programming software (CPS) is in the downloads above. For the right programming cable, ask us.

Can I use it as a licence-free PMR446 radio?

No. PMR446 radios must have a fixed antenna and at most 0.5 W. This radio has a removable antenna and more power, so it is not a licence-free PMR446 radio, even though it can tune to 446 MHz.
